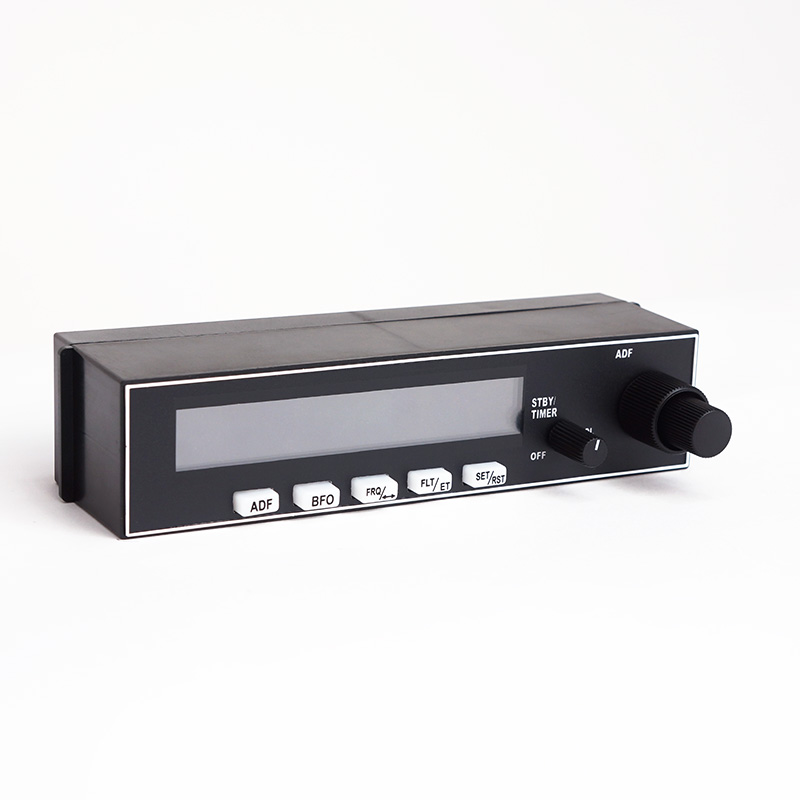

KR87 ADF

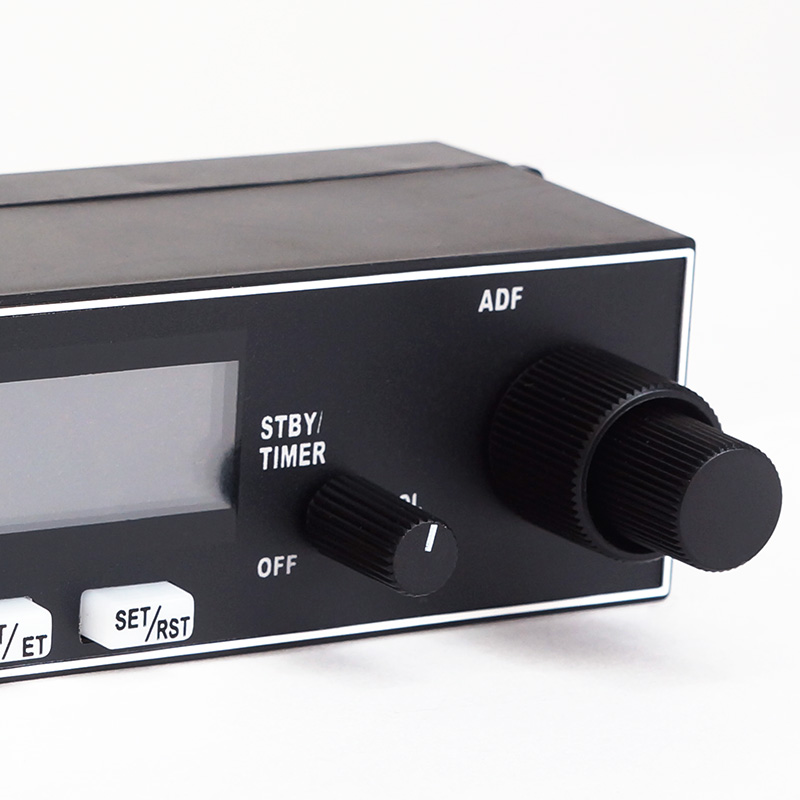

The active frequency (to which the ADF is tuned) is displayed in the left side of the window at all times. A standby frequency is displayed in the right side when “FRQ” is annunciated. The standby frequency is placed in “blind” memory when either FLT (Flight Time) or ET (Elapsed Time) mode is selected. With “FRQ”on, the standby frequency is selected using the frequency select knobs which may be rotated either clockwise or counterclockwise. Pull the small inner knob out to tune 1’s. Push the smaller inner knob in to tune 10’s. The outer knob tunes the 100’s and the 1000’s up to 1799. A 20–pole flatcable including connectors to connect to the RSC board is included. You will need the Radio Stack Controller Board to connect this module to your PC. The dimensions are: (WxDxH): 160x50x39 mm. / 6.3×1.968×1.535”

You will need the Mounting Set or the Radio Stack Cabinet in order to mount the radio modules.
